The hands-on activity entitled as rubber powered car enables the students to learn about energy, its types and its conversion from one form to another form. It also helps them to understand about basic vehicle design, its working and how elastic potential energy can be used to move a car. Step by step manual is provided to make their own vehicles by using Pakistan Science Club specially designed STEM kit which always been an excited and worth learning experience for them.

Age Levels: 8 – 12

Time:  45 minutes

Learning  Outcomes

As a result of this activity, students will:

  • Construct a rubber band car, comprehend its working and basic mechanism of vehicle designing.
  • Measure distance, calculate speed and check the variation with number of turns in the rubber band.
  • Communicate their design process and results.
  • Understand fundamentals of energy and its conversion in different forms.
  • Develop concept of potential and kinetic energy, the significance of their conversion and application in daily life.

Material required to make Rubber Powered Car

Student will only need PSC kit to make this car, the list of parts too make it is as following.

rubber powered car

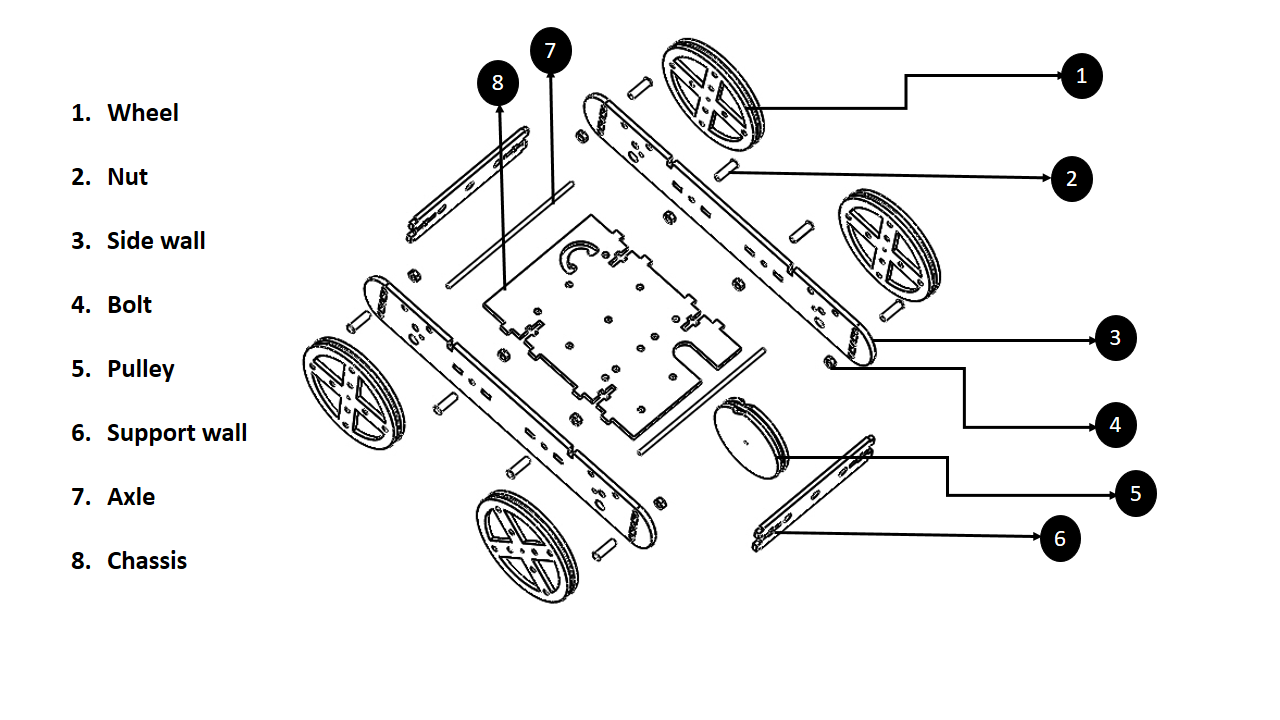

Rubber powered car components

Tools

  • A small screw driver

Steps of construction

Follow the simple step by step construction to assemble the car.

rubber powered car

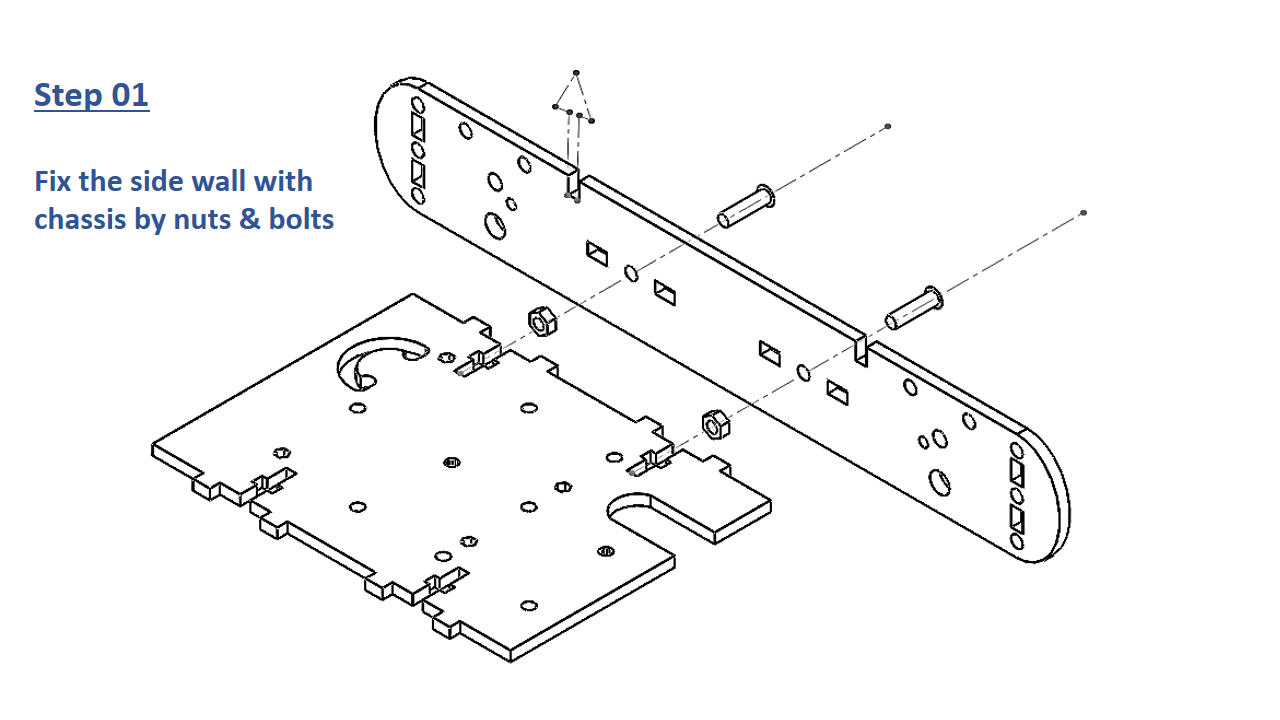

Assembling car's chassis and side wall

rubber powered car

rubber powered car

rubber powered car

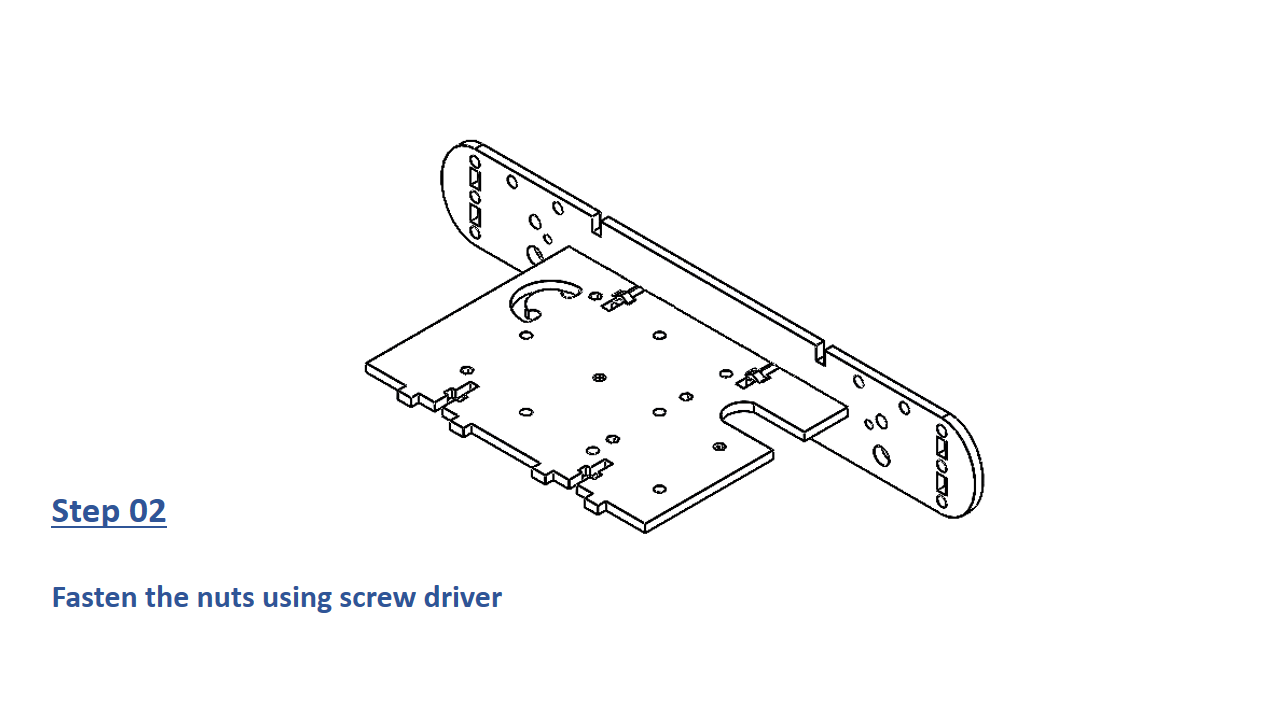

Fixing side wall to base

rubber powered car

rubber powered car

Assemble the other side wall

rubber powered car

Assembled

rubber powered car

rubber powered car

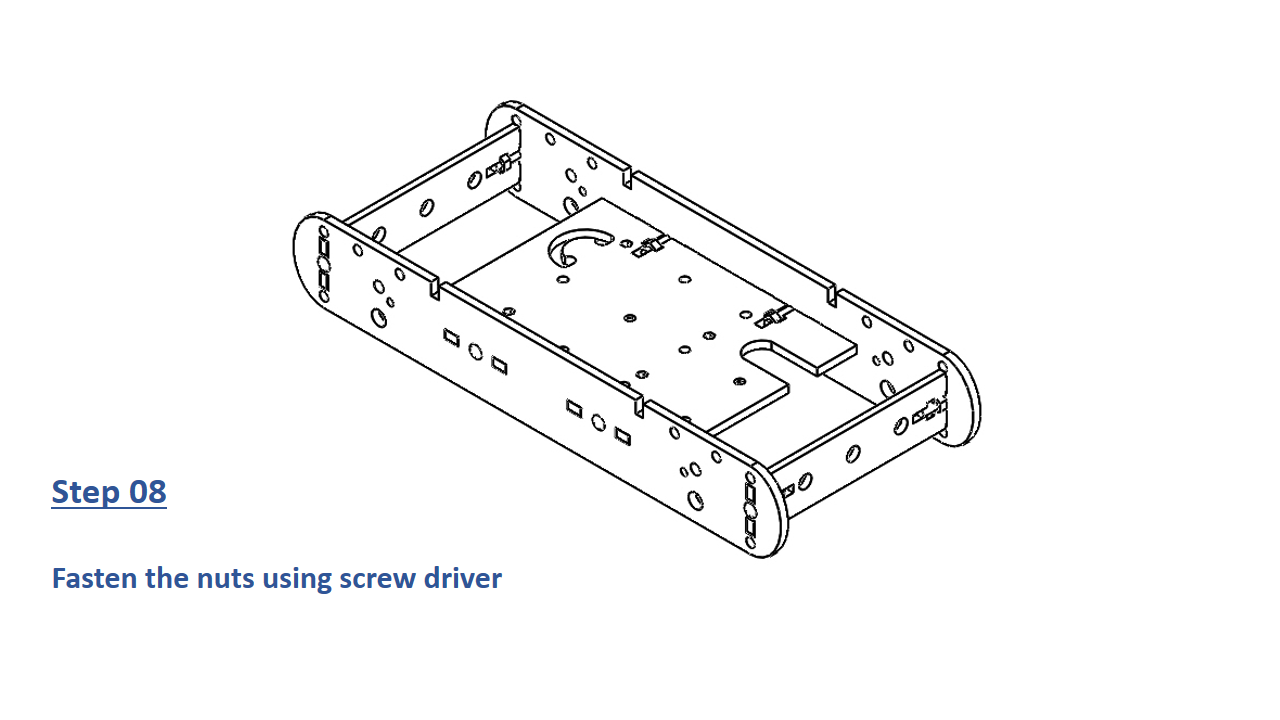

The base of the car is now ready

rubber powered car

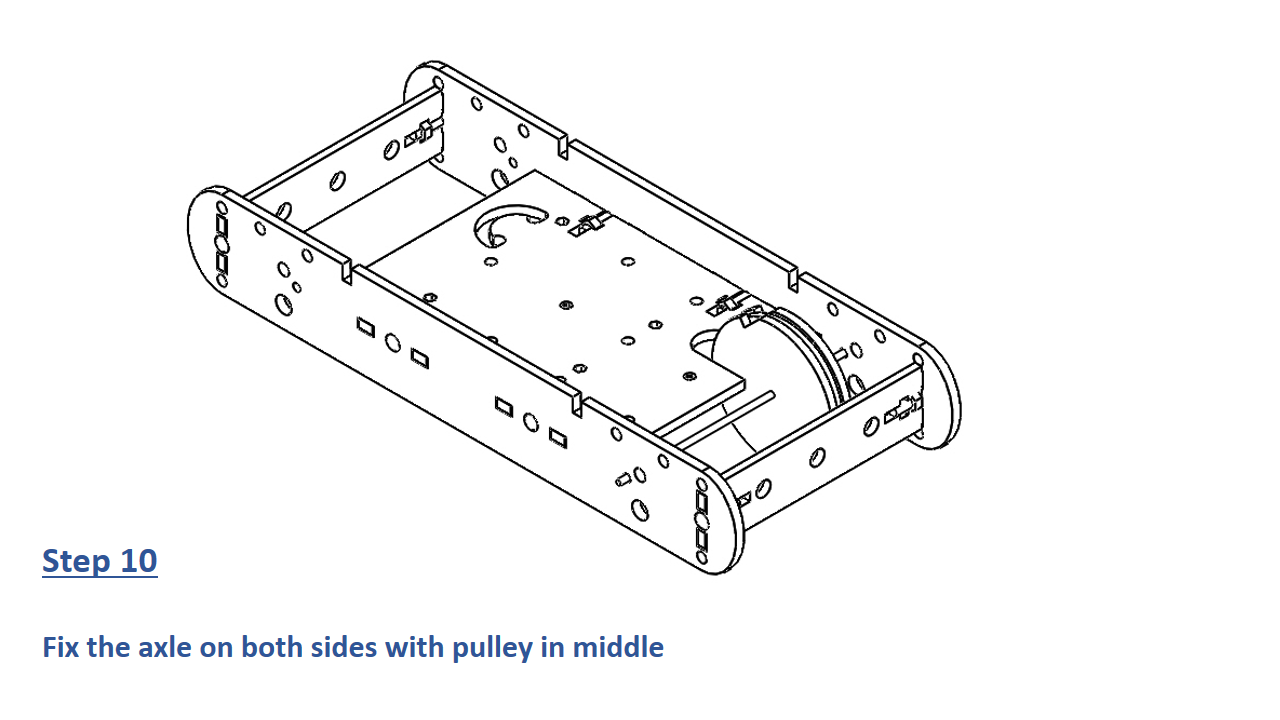

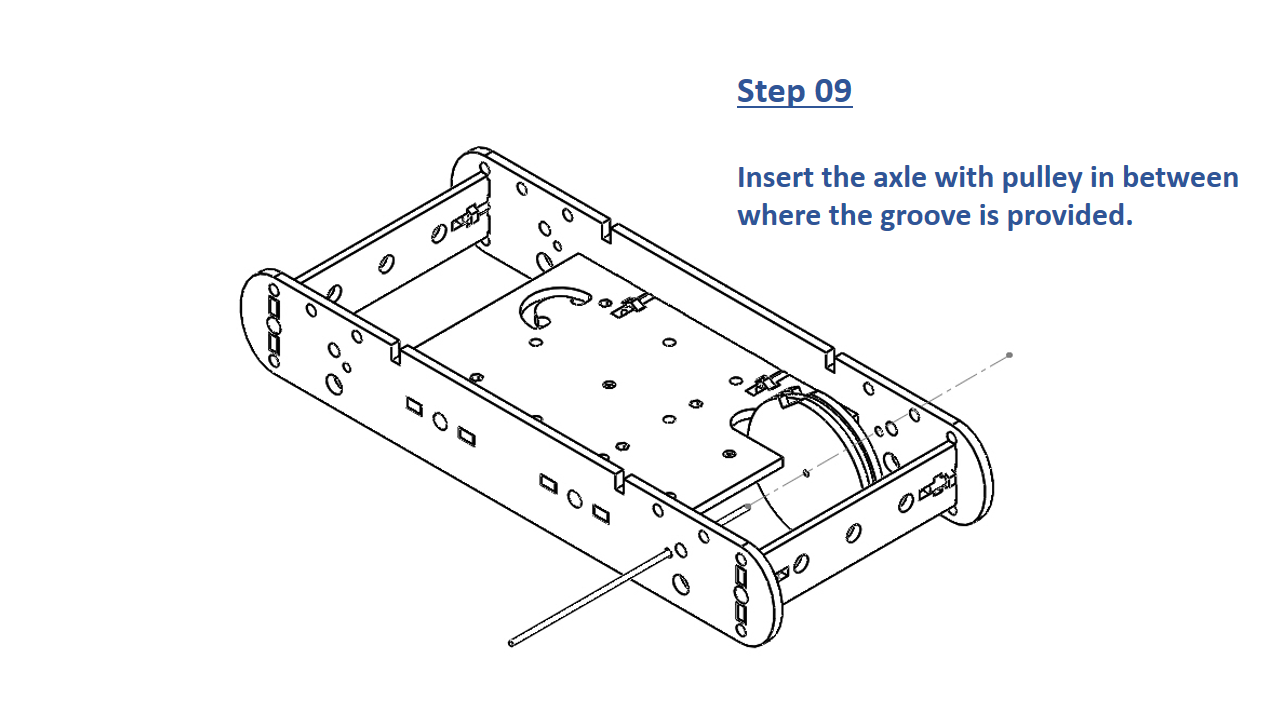

Fixing pulley

rubber powered car

rubber powered car

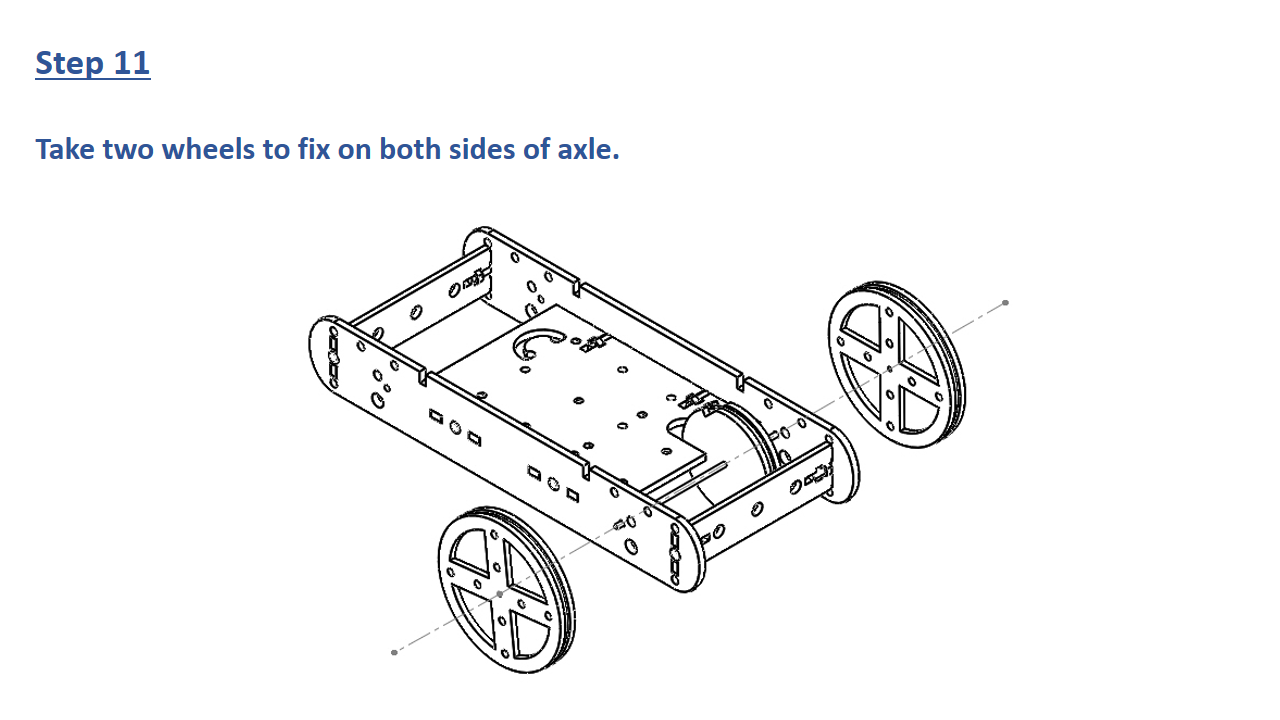

Fix the back tyres

rubber powered car

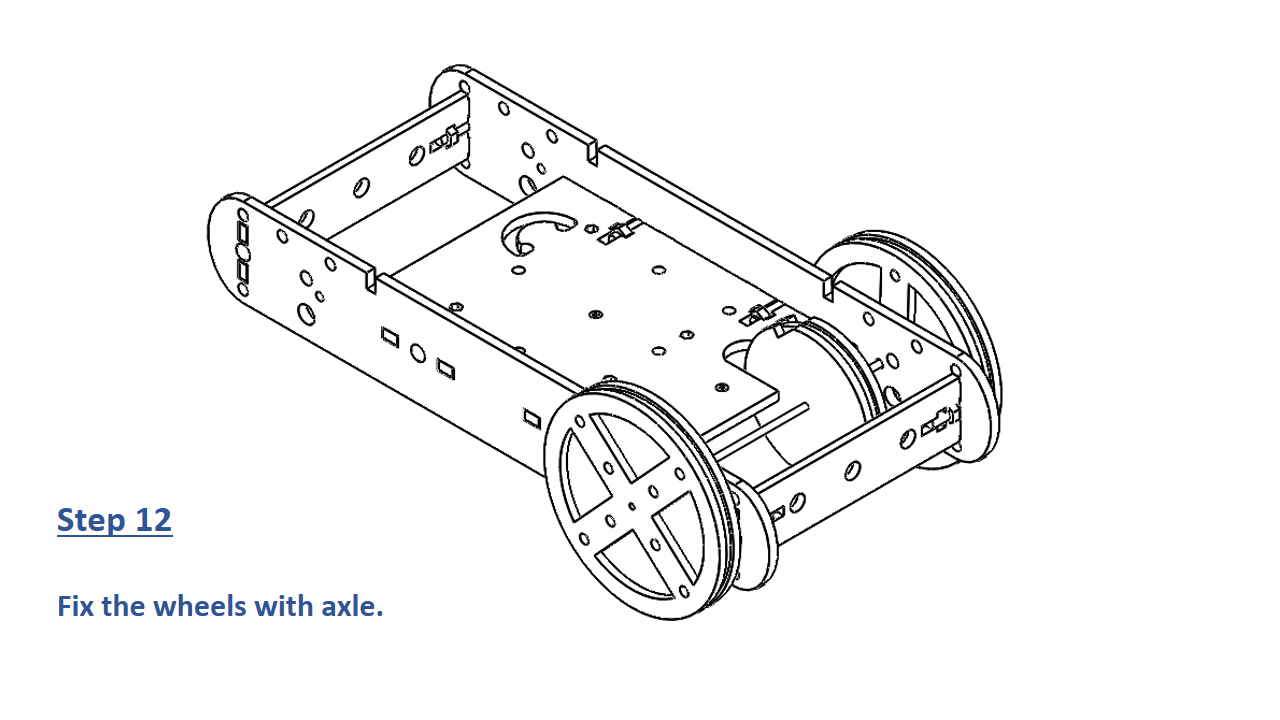

back tyres are fixed

rubber powered car

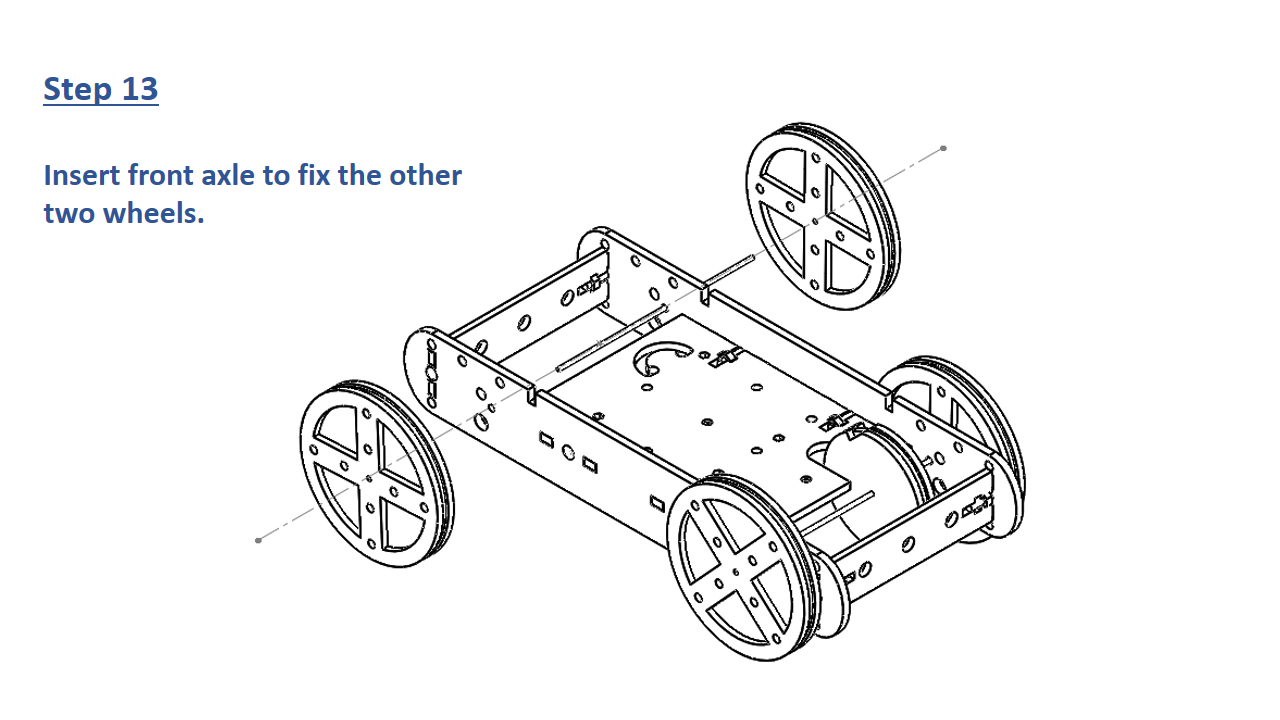

Fix the front tyres

rubber powered car

The car is now ready

STEM kit

Students can make multiple projects by using this inexpensive STEM kit which is available at sciencestore.pk
