The compact biogas plant DIY Digester Project: Biogas Production Plant Construction

Note

Biogas or Gobar Gas Plant is design by Appropriate rural of technology institute ARTI India, this biogas digester made by two 1000 and 750 liter Plastic water tank one is called Digester or fermenter tank other is called gas holder tank or movable dome.I am sharing on Pakistan Science club's web for educational and promotional purpose we hope its will helps Pakistani people and PSC's web portal international readers

The compact biogas plant many rural household used biogas as cooking food the tradition of domestic biogas plant require a daily input of forty kilograms of dung mixed about forty liter of water it takes about forty days for the dung to start producing biogas in order to accommodate the daily input of forty kilo gram dung and retaining it in to plant for forty days requires of plant having of very large capacity up about four cubic meters because of the large size such a plant requires a lot of space and it cost also high because of the moving populations of cattle the availability of animal manure has declined causing many of the existing biogas plants stop operation.

Construction of Portable Biogas Digester

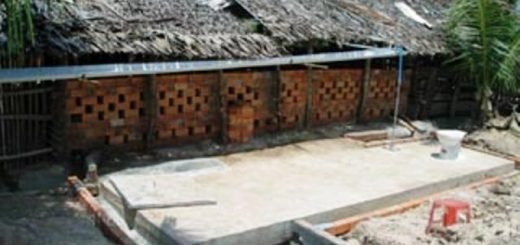

VACVINA biogas Plant information and Construction Video

Building of Biogas Plant by Recycled Plastic Drum

Biogas Digester Photos

Arti biogas plant

Appropriate rural of technology institute (arti) has developed new compact biogas system which is very easy to use. This biogas plant’s works on starchy sugary cellulose or fatty substances. One can use non vegetable oil seeds like pongamian, neem, caster, damaged or override fruits, grains, flour mill wastes, fruits of vaecas non animal risen of banana peel, or any other substance related feedstock, the feedstock must be closed grand and applying to the biogas plant. After mixing it with the about five to ten liters of water about one to one in half kilo gram of starchy material would yield sufficient gas to cook the meal is about four to five persons

Tthe amount of gas generated everyday depends upon the capacity of the fermenter or bio gas digester and gas holder fermenter capacity

Five hundred liters gas holder capacity four hundred available gas tow hundred and fifty liters duration of burning one hour
Digester capacity one thousand liters’ gas holder capacity seven hundred fifty liters available gas 700 liter and duration of burning two hours
Digester capacity two thousand five hundred letters
Gas holder capacity two thousand liters

Available gas one thousand seven hundred and fifty liters and duration of burning five hours

There are various ways which this biogas plants can be fabricated this arti biogas plant has been fabricated that the help of tow plastic tanks this one has a cement concrete tank has the fermenter or digester and the plastic tank has a gas holder.

This third model tank has tank made by sheet metals. Although the fermenter tank made of different materials the gas hold tank always made of plastic.

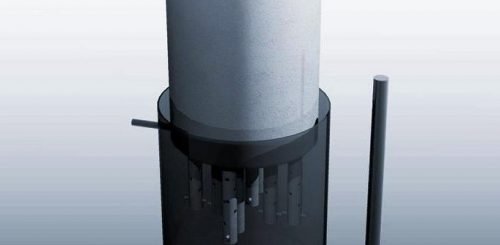

arti biogas plant

arti biogas plant Digester Diagram

How to make a Biogas plant digester by 1000 liter of water tank and gas holder tank 750 liter

Video of The compact biogas plant part one watch

Material required

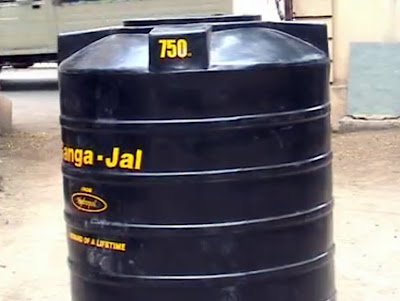

1^st 1000 liter Black colored molded plastic tank
2^nd 7500 liter Black colored molded plastic tank
90 millimeter T one piece PVC
90 millimeter female adapter 1 piece PVC
90 millimeter male adapter 2 piece PVC
90 millimeter cap 1 piece PVC
2 meter 90 millimeter diameter 1 piece PVC Pipe

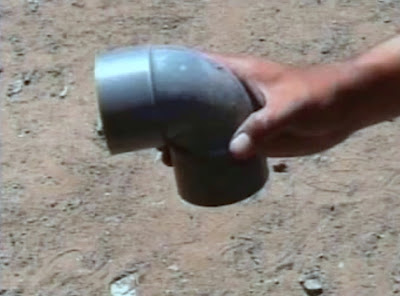

Elbow 63 millimeter 1 piece
60 millimeter male adapter 2 piece PVC
60 millimeter check nut 1 piece PVC
63 millimeter PVC pipe 90 centimeter long
12.5 PVC mail adapter 1 piece
12.5 Millimeter iron elbow
Epoxy risen and hardener
PVC cement Solution
Biogas Stove
PVC valve 50 millimeter dia
And tools
90 millimeter barrel piece
63 millimeter barrel piece
50 millimeter barrel piece
12.5 millimeter barrel piece

Construction of ARTI Compact Biogas Plant

First Take the one thousand liter tank cut in this manure perforated near the base By pressing Preheated Nineteen mm barrel piece against than perforated tank Also near the bottom but With fifty millimeter bout of peace Prudhomme of this position Would be helpful b sixty three millimeter barrel peace

Make a third holes one this position with the help of 63 mm barrel piece

The tank as three holes 2 near the bottom and 1near the top

Now PVC glue to the nineteen millimeter main adopted And fix it into this ball from inside the trades no protrude out of the tank fixed.

biogas plant diagram

ARTI Biogas Plant anaerobic digester Introduction Part 1

Video of The compact biogas plant part 2 Visit Biogas Plant anaerobic digester
Biogas Plant (Anaerobic Digester) Construction Part 3
Portable Gobar Plant (Anaerobic Digester) Part 4

Note

(Videos hosting on youtube Visitors from Pakistan can not see. Videos will upload other video hosting site soon as possible )

Video Published by biogas plant blog

Alternator video play (can working in Pakistan)

See Also

Making of DIY Biogas Plant, Anaerobic Digester Experiment

Making of DIY Biogas Plant, Anaerobic Digester Experiment Concept The purpose of this project is to discover ways to produce Biogas with alternate sources by using our local resources this project can help students to basics of Anaerobic digestion and…read more DIY Biogas Plant

Discussion form about ARTIi biogas plant construction help visit Construction of ARTI Biogas Plant step by step Video Portal

Update: 05-12-2012
