500 Watt 12DC to 220 VAC Power Inverter (UPS)Construction in Urdu
Power Inverter (UPS) Construction in Urdu this is a simple inverter you can make your own if you have Little Bit of Knowledge about electronics this inverter can run 1 watt to 500 watt appliance
500 Watt 12 VDC to 220 VAC Power Inverter (UPS) uninterruptible power supply(English) New
500 Watt Inverter schematic diagram
Discussions about Pakistan Science Club's Power Inverters 12 VDC to 220 VAC UPS, you can find problems, troubleshooting and construction help Please visit Power Inverters (UPS)12 VDC to 220" https://paksc.org/pk/forum.html
Power Inverter Wattage Chart
| inverters | Transformer volt | Transformer Amps | Transformer watt | No of Transistors D1047 |
| 50 watt inverter | 12 V | 4 A | 50 W | 2 |
| 100 watt inverter | 12 V | 10 A | 100 W | 4 to 6 |
| 300 watt inverter | 12 V | 25 A | 300 W | 6 to 8 |
| 500 watt inverter | 12 V | 40 A | 500 W | 8 to 10 |
| 1000 watt inverter | 24 V | 45 A | 1000 W | 20 to 26 |
| 3000 watt inverter | 24 V | 125 A | 3000 W | 40 to 50 |
| 5000 watt inverter | 48 V | 105 A | 5000 W | 60 to 70 |
| Note. table shows that requirement of D1047 transistors for different power inverter wattage | ||||
Related Articles:
-
500 Watt 12 VDC to 220 VAC Power Inverter (UPS) uninterruptible power supply (English) New
-
500 Watt 12DC to 220 VAC Power Inverter (UPS) Construction in Urdu ( New )
-
make your own inverter transformer visit Make your own homemade (DIY) Electric Transformer)
-
Schematic of an Inverter Circuit

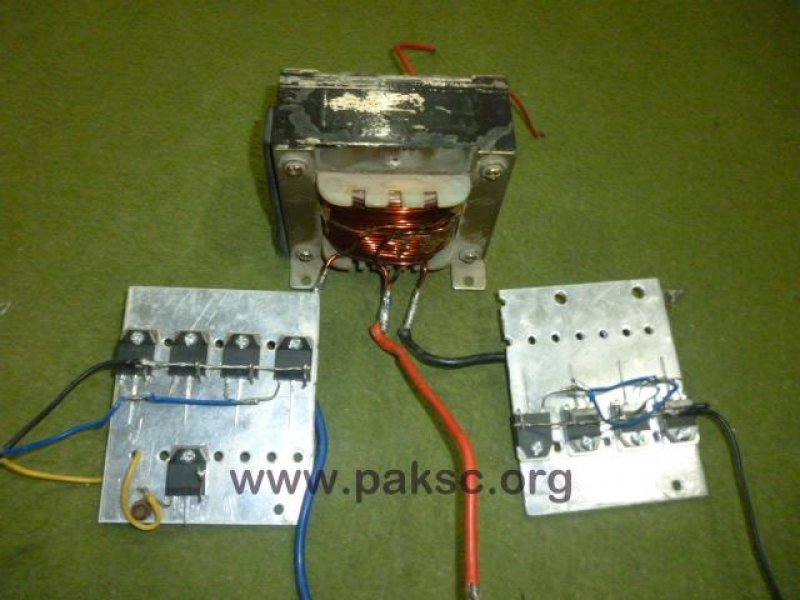

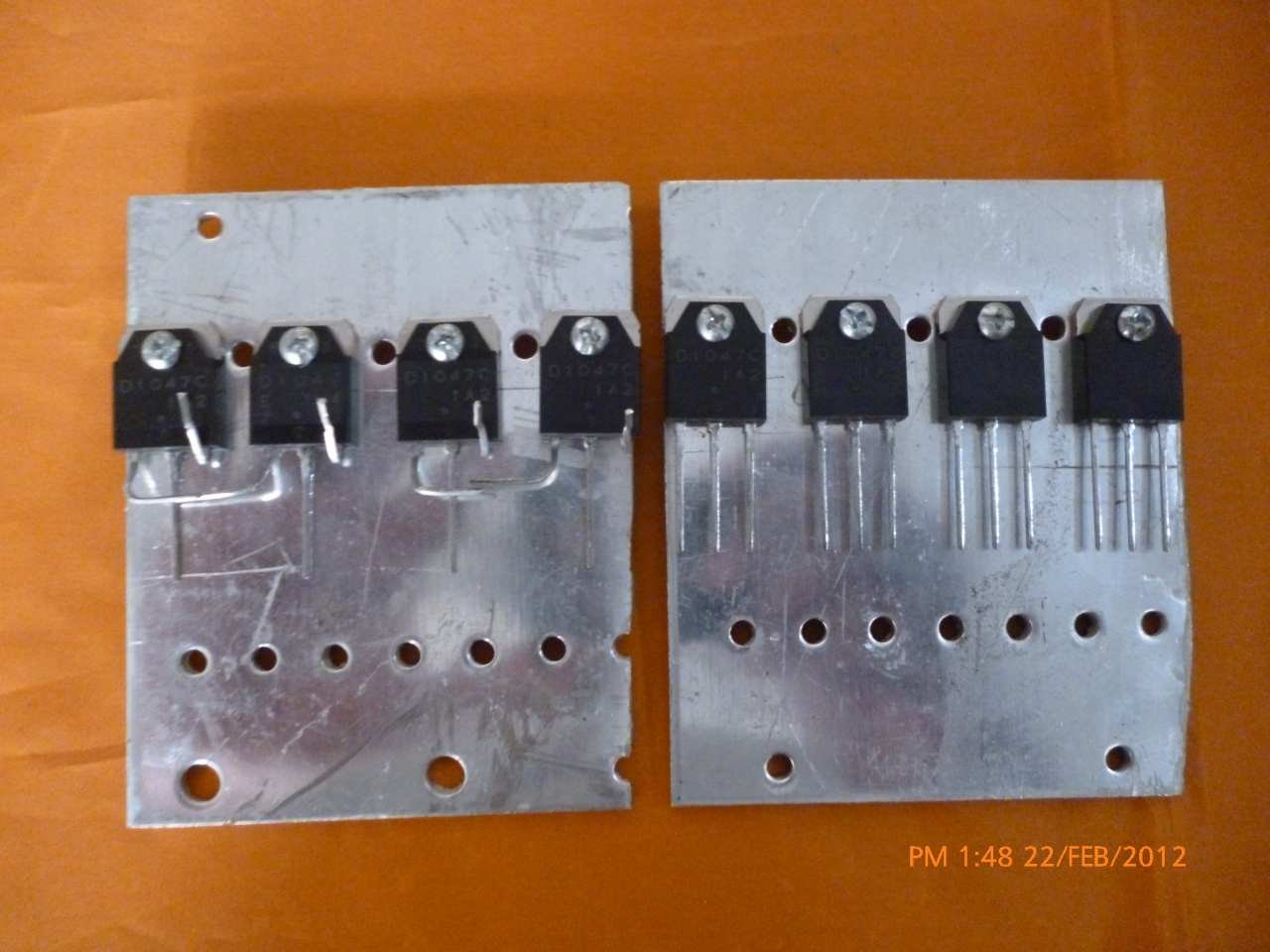

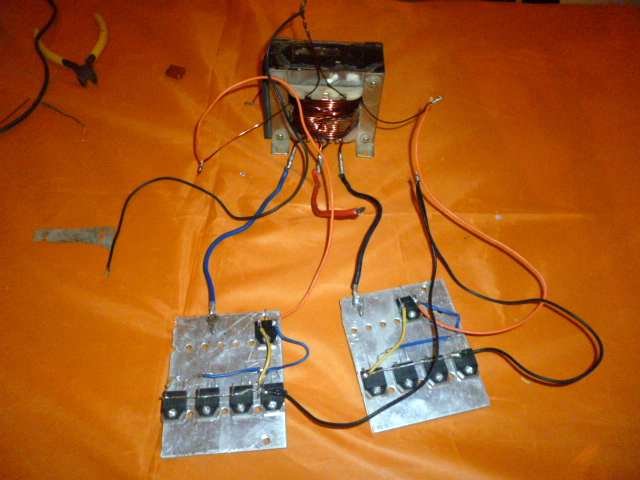

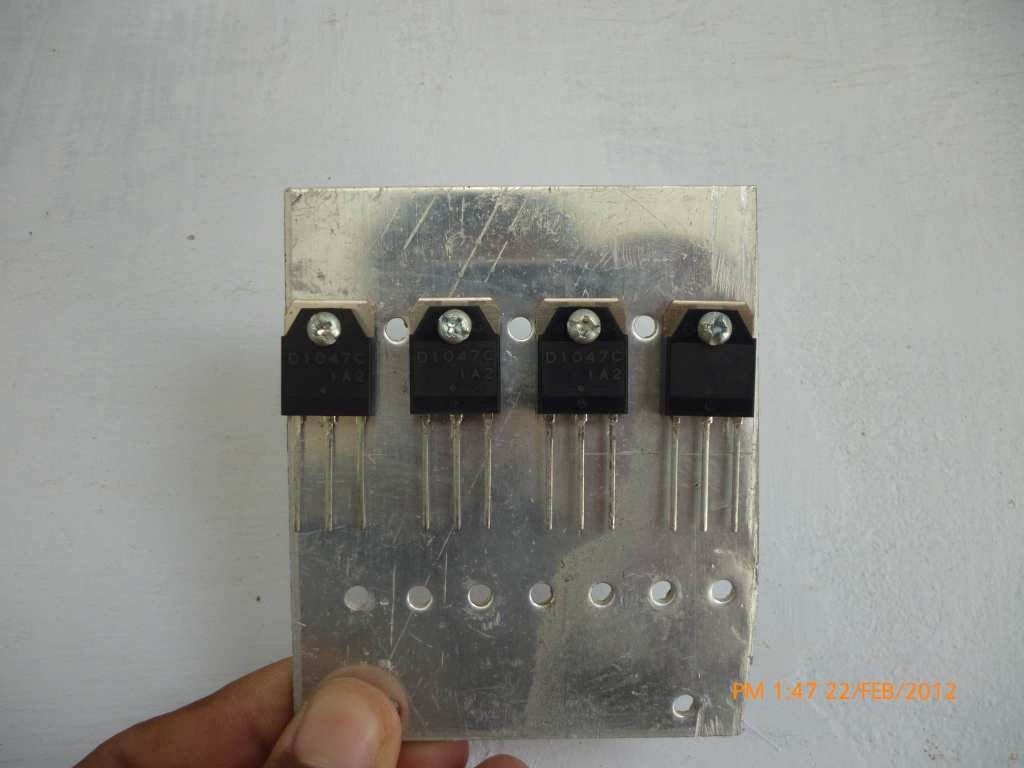

500 Watt 12DC to 220 VAC Power Inverter (UPS) Photo Gallery
500 watt UPS construction Video Members Only
Hi, My question is out of this thread. i wanna ask u “How to reduce the DC-voltages without changing current “. In my case I’ve 3.7 V Li-ion cell of 2 Amp i want to convert into 2 V and 2 A.
@Abdulrauf bro which turns sutible for 500 watt power inverter transformer primary and secondary coils pleas send me my email ma2604403@gmail.com
@abdulrauf Brother 500 power inverter transformer bananai ka vedios rasend karo pleas jaldi
13 feb 09:38 am which turns sutible for 500 watt transformer primary and secondary coils and winding core case size pleas @ abdulrauf bro muj aur link pa nahi mal raha hi pleas tum data rasend karo jladi pleas
Which turns sutible for 500 watt transformer primary and secondary coils
sir reliy kase lgate hai plz tell me
Previous comments from old site 79 comments
Monday, 16 February 2015 06:11 posted by Mian Babar
sir g mujhe transformer windings k formula chheye plz send me formula
Wednesday, 04 February 2015 06:36 posted by rashid mehmood
relay kase lagaty hain
Wednesday, 21 January 2015 06:47 posted by irfan sabri
Thanks. Added to my knowledge a lot
Sunday, 14 September 2014 06:48 posted by ayaz
how much time a battery can withstand with ups?
Friday, 05 September 2014 06:10 posted by Sajjad Haider
Asalam Alikum Sir
mayry pas steplizer ka transfermer hy kia woh use ho sakta hy is circut main
please bata dain
Monday, 01 September 2014 11:03 posted by onyemere I. collins
Nice knowledge… i will still like to know about the protection method in the power inverter.
Friday, 25 July 2014 11:47 posted by Abdul quddus*
sir ma 1000w inverter bnana chata hon plz diagram send krene
***
Tuesday, 08 July 2014 17:37 posted by ABDUL
@rohail
Kia aap ny coils ko ulat kar connect kr ky daikha tha?
If you build according to diagram it should be work well.
@attif ur rehman
what is sec coil output in AC ? and what was the input voltage. if your home electricity voltage is low then 220 V then you have to do some thing for it.
Flag As Spammer
Sunday, 29 June 2014 16:22 posted by rohail
hello sir mene apke circuit ko use krte hue 100 watt ka inverter bannaya tha aur 4 transiistor use kare the 2 and 2 in parallel on each coil lekin wo on nahi hoa to mene uski resistor short ki mgr on nhi hoa aur collector ke wire burn hogae aur transistor bhi short hogae me kia karoon help!! mera nuksan bhi hogaya
Friday, 20 June 2014 03:27 posted by abdul ghaffar
yaha pe ky sikhenay ko milay gh
Tuesday, 10 June 2014 12:00 posted by attif ur rehman
anyone kindly tell when we want to charge baterry then switch is off.then we get only 8.something volts how can we charge 12v baterry??
Monday, 12 May 2014 18:48 posted by Aqeel Ahmad
Hi, I am transformer winder and ups deller from Lahore
Thursday, 17 April 2014 16:09 posted by musa bhai
thank you for your suggestions
Tuesday, 18 March 2014 11:30 posted by Zain
Assla.o.Alikum .sir
is circuite main kon si relay use ho gi or wo kaha lagay gi . plz is ka mokaml circuite send ker dey
Tuesday, 11 February 2014 18:12 posted by ABDUL
@ Adil Ali
Waalaikum salam
ap pehly 50 watt ka inverter banaa lo phir aap zaida watt ka design karna.
0.5 to 1.0 volts is good for working.
Flag As Spammer
Thursday, 06 February 2014 20:42 posted by Adil Ali
Assla.o.Alikum
Bai mara ak zaroori swal he ke.agar me 50watt ka inverter bnau yan phir 5000watt ka .12+0+12 wali side par hmasha 0.7+0+0.7 volt ki hi zarorat he?
Saturday, 22 June 2013 09:13 posted by atif
ya battery kasy charge kary ga…woe kasy ho ga
Friday, 19 April 2013 16:03 posted by ABDUL
@Azmat Hussain thank you for your suggestions
Flag As Spammer
Friday, 19 April 2013 16:01 posted by ABDUL
@tykimky thanks for comment please visit http://science-videos.paksc.org/2013/04/15/diy-inverter-ups-transformer/ and watch this video about making of transformer i hope you will learn.
Thanks
Flag As Spammer
Friday, 19 April 2013 15:59 posted by ABDUL
@ Waseem aap agar video daikh lain to samaj aa jaey ga
link is http://science-videos.paksc.org/2013/04/13/how-to-make-inverter-ac-to-dc/
Flag As Spammer
Friday, 19 April 2013 15:59 posted by ABDUL
@ Waseem aap agar video daikh lain to samaj aa jaey ga
Flag As Spammer
Friday, 19 April 2013 15:54 posted by ABDUL
@ sohail thanks for comments we will try to make tutorial about it.
Flag As Spammer
Tuesday, 16 April 2013 17:10 posted by sohail
bhai plz 1000watt ups ciruit jo pcb bani bnai bazar sa mlti ha usay use kr k ups bnana bta dy
tnx
Monday, 21 January 2013 10:53 posted by Waseem
mera sawal ye hai ke is cercuit main i/p owr o/p kahan hai?
awr ye 220 volt to 12v transformer q lagatay hai?
shukria
Monday, 07 January 2013 07:07 posted by tykimky
my name ty kimky from cambodia i would like to as you could you plese help me to know how to calcute transfomer Inverter primary and secondary by formular i like you Circuit diagrame inverter 500W using Transistor D1047 becose my contry not eletricity supply all time , so could you please help me sir show me formular transfomer sir i woul like to saiy thank you verymarch for your help.
Friday, 04 January 2013 09:53 posted by ody
the 500 watts in your sites is this can be with refrigerator thanks..
Sunday, 23 December 2012 05:48 posted by Azmat Hussain
It is very useful project for the beginners and hobbyists.
I think you will have to add one more D1047 or D313 transistor as darlington pair on both heat-sink plates to the transistors then this inverter cercuit will work perfectly.And if you want to charge battery add 4 diode of 6 amp on each heat-sink emitter to collector of transistor.And if you add relay it will automatically charge the battery.But be careful while charging battery with it. it will over charge your battery if you are charging battery with it for a long time.Check battery voltage with digital meter if it is showing more then 14 volts stop charging battery otherwise battery will be over charged.
I am From Sialkot and I love electronics.
For further details you can call me at 03348084755 or send mail on azmat005@gmail.com
Saturday, 20 October 2012 04:20 posted by Talha Tariq
sir mujhe transformer ki turns ke baray mai batain me hod ups banata houn maghar main bazer se china inverter lakar cut banakar ups tayar karta houn
Tuesday, 25 September 2012 10:16 posted by Tahir Nisar
Dear Sir, Im impressed to your Homemade Inverter-would you like update your new circuit with relay with indication. Awaiting in this regard.
Wednesday, 12 September 2012 04:48 posted by Abdullah
where is output???
Sunday, 09 September 2012 05:39 posted by M.AHMAD
AoA sir how to design a transformer.core size and turn ratio according to standard wire guagr plz.
Thursday, 23 August 2012 17:11 posted by ali.ali
SIR I HAVE ONE QUESTION THAT FOR 40AMPHER BATTERY OR STANDARD SUZUKI MEHRAN BATTERY ..WHICH TRASFORMER WILL BE USE…BECAUSE…IT WONT WORK ON 500WATT..PLEASE HELP ME SIR
Thursday, 09 August 2012 06:51 posted by BILAL
have any idea for cheap solar energy which can run 1000 watts home items
Saturday, 04 August 2012 15:11 posted by abdulwahid
sir hamain karachi me copper wire ky transformer kahan sy asani sy mil saktay hain. plz bta dain. ya mera email address hy. abdulwahidpatni@yahoo.com
Tuesday, 24 July 2012 01:03 posted by Ayaz
how to connect Relay to circuit
Friday, 13 July 2012 15:26 posted by Muhammad Jawad Arif
how to making a transformer tell me complete ratio and how to find wore no core and turns of transformer if any book in urdu tell me about this
Friday, 13 July 2012 15:25 posted by Muhammad Jawad Arif
how to making a transformer tell me complete ratio and how to find wore no core and turns of transformer if any book in urdu tell me about this
Friday, 13 July 2012 06:04 posted by mudassar iqbla
bhai main LED k zreya apna name likhna hay or main chata hon k wo flashig b kary to us ke flashing ka treqa plz batain
Friday, 06 July 2012 11:53 posted by Akhtar ali
have any idea for cheap solar energy which can run 1000 watts home items.
Tuesday, 19 June 2012 08:49 posted by sharjeel
ASLAM-O-ALAIKUM SIR.I want to ask about gauge of copper wire,that same type of copper wire is used for making different transformer.if this correct then ok,if this is not correct then you tell how I used different gauge of copper wire for making different transformer….
Monday, 18 June 2012 08:03 posted by Abrar ahmed javed
How to make a solar charger for 12v battery?
Thursday, 07 June 2012 12:09 posted by ABDUL
@Ali Muhammad Thanks.
I did’nt experiment with PN Junction Diode.
the main purpose of resistor is to start inverter, for 1500 watt inverter 1k ohm resistor is good to starts inverter but you can try different resistors.
Flag As Spammer
Tuesday, 05 June 2012 10:57 posted by Ali Muhammad
Dear Paksc it is very good experience for every one, that how to make our own UPS…Thanks Buddy..
Instead of resistor between E & C can we use a PN Junction Diode?
For making 1500w UPS Inverter,what rating Resistor should we use,Should we use 100 Ohm,500 Ohm, 1K or 10K?
Tuesday, 05 June 2012 10:53 posted by Ali Muhammad
Instead of resistor between E & C can we use a PN Junction Diode?
For making 1500w UPS Inverter,what rating Resistor should we use,Should we use 100 Ohm,500 Ohm, 1K or 10K?
Saturday, 02 June 2012 03:51 posted by ABDUL
@Muntazir Hussain see Power Inverter Wattage Chart
Flag As Spammer
Saturday, 02 June 2012 03:49 posted by ABDUL
@fawad Koi sa be transformer use ho sakta hy
Flag As Spammer
Saturday, 02 June 2012 03:48 posted by ABDUL
@jamil ahmed aap ki battery main problem ho sakta hy, aap ka inverter kitny amps ki charging karta hy?
Flag As Spammer
Saturday, 02 June 2012 03:47 posted by ABDUL
@tayyab ali App kahaan rahty ho? karachi main ye asani se mil jata hy..
Flag As Spammer
Friday, 01 June 2012 16:35 posted by tayyab ali
sir tanserformer ab ki jasa nahi mil raha he ap babt de ki kis tana se wire lagahe thi or tansformarka plz
Monday, 28 May 2012 09:12 posted by jamil ahmed
Assalam o Aliekum ! bhae mere pas ek inverter ha lekin wo chrging problem kr raha ha aur charge krne k bjae battery ko mazeed discharge kr raha bqi sab ok ha, kya fault hoskta ha ap rehnumai farmaen … thank you
Sunday, 27 May 2012 15:00 posted by fawad
transformer step up use karna hai ya step down
Saturday, 26 May 2012 12:28 posted by Muntazir Hussain
salam sir,
I want to make 80 watt inverter.plz sent me some data and information that how can i make it by using d1047c transister.
Wednesday, 16 May 2012 11:24 posted by shaizi
plz tell easy way to make 1000watt ups& making ups from baike batry.reuse battry&other project .its ur big achevment
Monday, 14 May 2012 18:56 posted by Usman Tariq
AOA
Please send me the video or url or 500watt of ups video
Sunday, 13 May 2012 07:07 posted by umairtariq
plz 500 watt ups ki video upload kr de
Friday, 11 May 2012 15:01 posted by ABDUL
Dear Abdul malik And umair relay system will explain in next video soon..
Thanks
Flag As Spammer
Friday, 11 May 2012 09:42 posted by abdul malik
plz 500 watt UPS ki video upload kr de. aur relay bi bana sikhayen.
Thursday, 10 May 2012 06:19 posted by Abdul Malik
please tell me how to make relay for UPS and how to fit it in UPS.
Saturday, 05 May 2012 13:51 posted by umair kayani
ups bnany k lie. relay ki kon si 2 leg 220v power supply or kon si 2 transformer k saat lgain gy ?
Wednesday, 02 May 2012 17:17 posted by ABDUL
@Salman Karachi main to yeh available hai app kahaan rahty ho?
Flag As Spammer
Monday, 30 April 2012 15:20 posted by ARSALAN
myra pehla vizat tha kafi kuhc sikhne ko mila albta is k amp kistahna not karne hne
Friday, 27 April 2012 19:32 posted by Salman
Sir yaha to electronic shops walai kehtai he k transformer me 12+12 me 3 ampere se zyada nahi milta balkai bantai he nahi or ap ne 40 ampere transformer recomend kiya he 500 watt k liye.kya ye 12+12 volt and 3 ampere chalega ka nahi.Plz reply me
Tuesday, 24 April 2012 06:38 posted by Tanveer
transformer bane ka tarika bata dain plz………….
Monday, 23 April 2012 03:45 posted by naz
sir kindly transformer winding ka formula bata den
Sunday, 22 April 2012 09:31 posted by Shafiq UR rahman
sir g mujhe transformer windings k formula chheye plz send me formula
Sunday, 22 April 2012 02:40 posted by ABDUL
@zeeshan ali
if you know about your transistor terminals collector, base, emitter you can use same formula.whatever it’s collector is inside or outside of the transistor
Flag As Spammer
Saturday, 21 April 2012 20:23 posted by shahid
hi to all
ma transformer bnane ka tareqa shekkhna chahta ho plz tell me
Saturday, 21 April 2012 05:01 posted by zeeshan ali
me ne d1047 kharede ha leken multimeter se check karne par us ke reading pnp transistor ke ha.. aur aap logo ke terminal configuration(tarteeb) ke belkul baraks(opposite) mid wala terminal collecter(jo ke body aur heat sink se attach karte ha) ha. please muje es ke sol bata de.
Thursday, 19 April 2012 16:08 posted by WASEEM
yarro mera nam waseem hai yarro me ne kuch sooochaa kiya?
FOFLE
FOURMULA
OF
FULLESS
ENGEN AUR MERA URL ADDRES NAHI
Wednesday, 18 April 2012 10:49 posted by waseem baig
sir 500 watt k inverter ki video kahan sai milay gi.please 500 watt k inverter ki video upload kar dain
Tuesday, 17 April 2012 15:17 posted by Mohammad Kashif
men ny account bana hy apki site pe lekin phir b video show nai ho rahi.
Flag As Spammer
Saturday, 07 April 2012 12:46 posted by wasim
plz i want automatic battery charger.auto cut off when the is fully charged.
thnks
Wednesday, 04 April 2012 21:38 posted by ejaz ahmad
Hai! I am a student of Electrical Engineering currently 6th semester, and i want to do a mini project related to the communication and wireless but i dont find any intrusting topic.If any body hav a suggestion for me so plz Engr.ejazahmad@gmail.com..
Wednesday, 04 April 2012 10:37 posted by haris aslam
sir ap jo trasnformar ktne ampere ka leya hai
Wednesday, 04 April 2012 04:46 posted by shahid
dosth mara pass solar systam ha mger is key enrgey bahath come ha ma is 12v make karnah chath ho plz help me reple
Monday, 02 April 2012 04:37 posted by Mohammad Kashif
how to become member, and watch this video.
Flag As Spammer
Sunday, 01 April 2012 18:38 posted by Muhammad Umair
assalam-o-alikum sir hum 500 watt ma kya kya chala sakhte hai or mujhe 500 watt ki 12vdc ki video dekhni hai mujhe ye video kahan mile gi sir
Sunday, 01 April 2012 05:33 posted by ABDUL
Wa Salam.
Dear Khan Mohammad in this post about 500 watt inverter you can read and learn about it , for 100 watts you just need 2,2 D1047 transistors..
Thanks
Flag As Spammer
Saturday, 31 March 2012 17:04 posted by khan mohammad
ASSALAM ALIEKUM:
Sir,I watched your video in which you made an inverter circuit which consist on a 30watt transformer,two 1047Transistors,two resistors and about five turns transformer coil.Now I want to use 100watt transformer then what I wil do.
please give some information I am the beginner. ok thanks.
