500 Watt 12 VDC to 220 VAC Power Inverter (UPS) Construction in Urdu

500 Watt 12DC to 220 VAC Power Inverter (UPS)Construction in Urdu

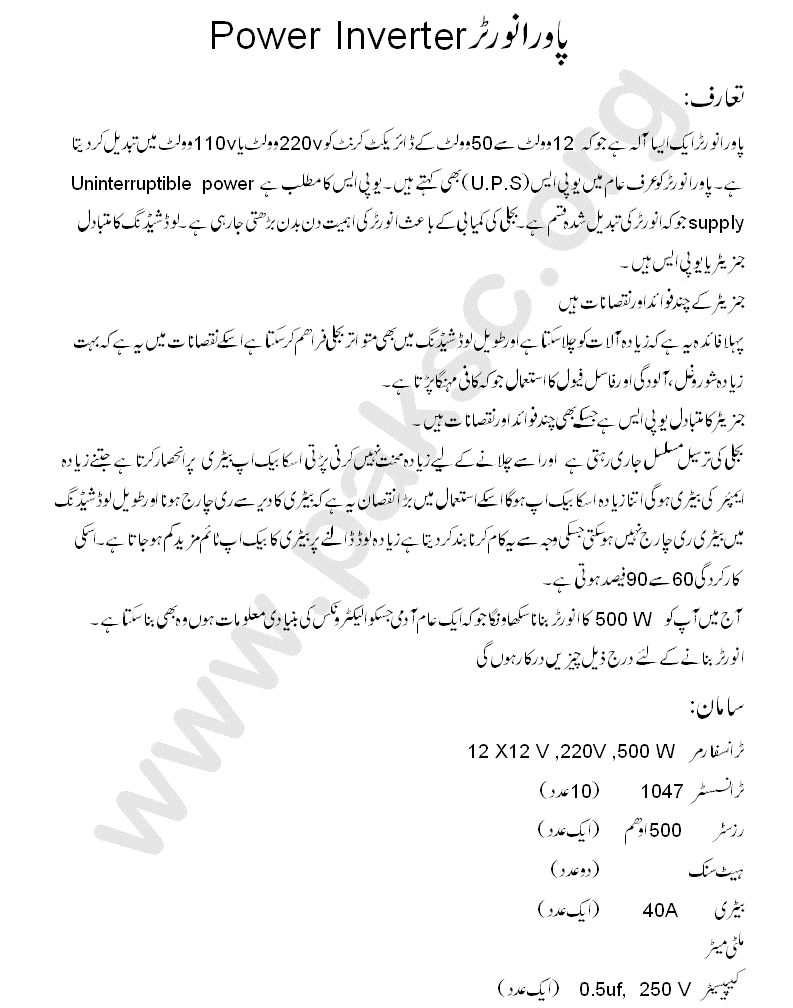

Power Inverter (UPS) Construction in Urdu this is a simple inverter you can make your own if you have Little Bit of Knowledge about electronics this inverter can run 1 watt to 500 watt appliance

500 Watt 12 VDC to 220 VAC Power Inverter (UPS) uninterruptible power supply(English) New

500 Watt Inverter schematic diagram

500 Watt Inverter schematic diagram



Discussions about Pakistan Science Club's Power Inverters 12 VDC to 220 VAC UPS, you can find problems, troubleshooting and construction help Please visit Power Inverters (UPS)12 VDC to 220" http://paksc.org/pk/forum.html

Power Inverter Wattage Chart

inverters Transformer volt Transformer Amps Transformer watt No of Transistors D1047
50 watt inverter 12 V 4 A 50 W 2
100 watt inverter 12 V 10 A 100 W 4 to 6
300 watt inverter 12 V 25 A 300 W 6 to 8
500 watt inverter 12 V 40 A 500 W 8 to 10
1000 watt inverter 24 V 45 A 1000 W 20 to 26
3000 watt inverter 24 V 125 A 3000 W 40 to 50
5000 watt inverter 48 V 105 A 5000 W 60 to 70
Note. table shows that requirement of D1047 transistors for different power inverter wattage


Related Articles:

500 Watt 12DC to 220 VAC Power Inverter (UPS) Photo Gallery

500 watt UPS construction Video Members Only




Viode Easy Homemade 50 watt Power Inverters (12 VDC to 220 VAC) UPS

Please follow and like us:
  • admin

    Previous comments from old site 79 comments

    Monday, 16 February 2015 06:11 posted by Mian Babar
    sir g mujhe transformer windings k formula chheye plz send me formula

    Wednesday, 04 February 2015 06:36 posted by rashid mehmood
    relay kase lagaty hain

    Wednesday, 21 January 2015 06:47 posted by irfan sabri
    Thanks. Added to my knowledge a lot

    Sunday, 14 September 2014 06:48 posted by ayaz
    how much time a battery can withstand with ups?

    Friday, 05 September 2014 06:10 posted by Sajjad Haider
    Asalam Alikum Sir
    mayry pas steplizer ka transfermer hy kia woh use ho sakta hy is circut main
    please bata dain

    Monday, 01 September 2014 11:03 posted by onyemere I. collins
    Nice knowledge… i will still like to know about the protection method in the power inverter.

    Friday, 25 July 2014 11:47 posted by Abdul quddus*
    sir ma 1000w inverter bnana chata hon plz diagram send krene
    ***

    Tuesday, 08 July 2014 17:37 posted by ABDUL
    @rohail
    Kia aap ny coils ko ulat kar connect kr ky daikha tha?

    If you build according to diagram it should be work well.

    @attif ur rehman
    what is sec coil output in AC ? and what was the input voltage. if your home electricity voltage is low then 220 V then you have to do some thing for it.
    Flag As Spammer
    Sunday, 29 June 2014 16:22 posted by rohail
    hello sir mene apke circuit ko use krte hue 100 watt ka inverter bannaya tha aur 4 transiistor use kare the 2 and 2 in parallel on each coil lekin wo on nahi hoa to mene uski resistor short ki mgr on nhi hoa aur collector ke wire burn hogae aur transistor bhi short hogae me kia karoon help!! mera nuksan bhi hogaya

    Friday, 20 June 2014 03:27 posted by abdul ghaffar
    yaha pe ky sikhenay ko milay gh

    Tuesday, 10 June 2014 12:00 posted by attif ur rehman
    anyone kindly tell when we want to charge baterry then switch is off.then we get only 8.something volts how can we charge 12v baterry??

    Monday, 12 May 2014 18:48 posted by Aqeel Ahmad
    Hi, I am transformer winder and ups deller from Lahore

    Thursday, 17 April 2014 16:09 posted by musa bhai
    thank you for your suggestions

    Tuesday, 18 March 2014 11:30 posted by Zain
    Assla.o.Alikum .sir
    is circuite main kon si relay use ho gi or wo kaha lagay gi . plz is ka mokaml circuite send ker dey

    Tuesday, 11 February 2014 18:12 posted by ABDUL
    @ Adil Ali
    Waalaikum salam

    ap pehly 50 watt ka inverter banaa lo phir aap zaida watt ka design karna.
    0.5 to 1.0 volts is good for working.
    Flag As Spammer
    Thursday, 06 February 2014 20:42 posted by Adil Ali
    Assla.o.Alikum
    Bai mara ak zaroori swal he ke.agar me 50watt ka inverter bnau yan phir 5000watt ka .12+0+12 wali side par hmasha 0.7+0+0.7 volt ki hi zarorat he?

    Saturday, 22 June 2013 09:13 posted by atif
    ya battery kasy charge kary ga…woe kasy ho ga

    Friday, 19 April 2013 16:03 posted by ABDUL
    @Azmat Hussain thank you for your suggestions
    Flag As Spammer
    Friday, 19 April 2013 16:01 posted by ABDUL
    @tykimky thanks for comment please visit http://science-videos.paksc.org/2013/04/15/diy-inverter-ups-transformer/ and watch this video about making of transformer i hope you will learn.
    Thanks
    Flag As Spammer
    Friday, 19 April 2013 15:59 posted by ABDUL
    @ Waseem aap agar video daikh lain to samaj aa jaey ga
    link is http://science-videos.paksc.org/2013/04/13/how-to-make-inverter-ac-to-dc/
    Flag As Spammer
    Friday, 19 April 2013 15:59 posted by ABDUL
    @ Waseem aap agar video daikh lain to samaj aa jaey ga
    Flag As Spammer
    Friday, 19 April 2013 15:54 posted by ABDUL
    @ sohail thanks for comments we will try to make tutorial about it.
    Flag As Spammer
    Tuesday, 16 April 2013 17:10 posted by sohail
    bhai plz 1000watt ups ciruit jo pcb bani bnai bazar sa mlti ha usay use kr k ups bnana bta dy
    tnx

    Monday, 21 January 2013 10:53 posted by Waseem
    mera sawal ye hai ke is cercuit main i/p owr o/p kahan hai?
    awr ye 220 volt to 12v transformer q lagatay hai?
    shukria

    Monday, 07 January 2013 07:07 posted by tykimky
    my name ty kimky from cambodia i would like to as you could you plese help me to know how to calcute transfomer Inverter primary and secondary by formular i like you Circuit diagrame inverter 500W using Transistor D1047 becose my contry not eletricity supply all time , so could you please help me sir show me formular transfomer sir i woul like to saiy thank you verymarch for your help.

    Friday, 04 January 2013 09:53 posted by ody
    the 500 watts in your sites is this can be with refrigerator thanks..

    Sunday, 23 December 2012 05:48 posted by Azmat Hussain
    It is very useful project for the beginners and hobbyists.
    I think you will have to add one more D1047 or D313 transistor as darlington pair on both heat-sink plates to the transistors then this inverter cercuit will work perfectly.And if you want to charge battery add 4 diode of 6 amp on each heat-sink emitter to collector of transistor.And if you add relay it will automatically charge the battery.But be careful while charging battery with it. it will over charge your battery if you are charging battery with it for a long time.Check battery voltage with digital meter if it is showing more then 14 volts stop charging battery otherwise battery will be over charged.
    I am From Sialkot and I love electronics.
    For further details you can call me at 03348084755 or send mail on azmat005@gmail.com

    Saturday, 20 October 2012 04:20 posted by Talha Tariq
    sir mujhe transformer ki turns ke baray mai batain me hod ups banata houn maghar main bazer se china inverter lakar cut banakar ups tayar karta houn

    Tuesday, 25 September 2012 10:16 posted by Tahir Nisar
    Dear Sir, Im impressed to your Homemade Inverter-would you like update your new circuit with relay with indication. Awaiting in this regard.

    Wednesday, 12 September 2012 04:48 posted by Abdullah
    where is output???

    Sunday, 09 September 2012 05:39 posted by M.AHMAD
    AoA sir how to design a transformer.core size and turn ratio according to standard wire guagr plz.

    Thursday, 23 August 2012 17:11 posted by ali.ali
    SIR I HAVE ONE QUESTION THAT FOR 40AMPHER BATTERY OR STANDARD SUZUKI MEHRAN BATTERY ..WHICH TRASFORMER WILL BE USE…BECAUSE…IT WONT WORK ON 500WATT..PLEASE HELP ME SIR

    Thursday, 09 August 2012 06:51 posted by BILAL
    have any idea for cheap solar energy which can run 1000 watts home items

    Saturday, 04 August 2012 15:11 posted by abdulwahid
    sir hamain karachi me copper wire ky transformer kahan sy asani sy mil saktay hain. plz bta dain. ya mera email address hy. abdulwahidpatni@yahoo.com

    Tuesday, 24 July 2012 01:03 posted by Ayaz
    how to connect Relay to circuit

    Friday, 13 July 2012 15:26 posted by Muhammad Jawad Arif
    how to making a transformer tell me complete ratio and how to find wore no core and turns of transformer if any book in urdu tell me about this

    Friday, 13 July 2012 15:25 posted by Muhammad Jawad Arif
    how to making a transformer tell me complete ratio and how to find wore no core and turns of transformer if any book in urdu tell me about this

    Friday, 13 July 2012 06:04 posted by mudassar iqbla
    bhai main LED k zreya apna name likhna hay or main chata hon k wo flashig b kary to us ke flashing ka treqa plz batain

    Friday, 06 July 2012 11:53 posted by Akhtar ali
    have any idea for cheap solar energy which can run 1000 watts home items.

    Tuesday, 19 June 2012 08:49 posted by sharjeel
    ASLAM-O-ALAIKUM SIR.I want to ask about gauge of copper wire,that same type of copper wire is used for making different transformer.if this correct then ok,if this is not correct then you tell how I used different gauge of copper wire for making different transformer….

    Monday, 18 June 2012 08:03 posted by Abrar ahmed javed
    How to make a solar charger for 12v battery?

    Thursday, 07 June 2012 12:09 posted by ABDUL
    @Ali Muhammad Thanks.
    I did’nt experiment with PN Junction Diode.
    the main purpose of resistor is to start inverter, for 1500 watt inverter 1k ohm resistor is good to starts inverter but you can try different resistors.
    Flag As Spammer
    Tuesday, 05 June 2012 10:57 posted by Ali Muhammad
    Dear Paksc it is very good experience for every one, that how to make our own UPS…Thanks Buddy..
    Instead of resistor between E & C can we use a PN Junction Diode?

    For making 1500w UPS Inverter,what rating Resistor should we use,Should we use 100 Ohm,500 Ohm, 1K or 10K?

    Tuesday, 05 June 2012 10:53 posted by Ali Muhammad
    Instead of resistor between E & C can we use a PN Junction Diode?

    For making 1500w UPS Inverter,what rating Resistor should we use,Should we use 100 Ohm,500 Ohm, 1K or 10K?

    Saturday, 02 June 2012 03:51 posted by ABDUL
    @Muntazir Hussain see Power Inverter Wattage Chart
    Flag As Spammer
    Saturday, 02 June 2012 03:49 posted by ABDUL
    @fawad Koi sa be transformer use ho sakta hy
    Flag As Spammer
    Saturday, 02 June 2012 03:48 posted by ABDUL
    @jamil ahmed aap ki battery main problem ho sakta hy, aap ka inverter kitny amps ki charging karta hy?
    Flag As Spammer
    Saturday, 02 June 2012 03:47 posted by ABDUL
    @tayyab ali App kahaan rahty ho? karachi main ye asani se mil jata hy..
    Flag As Spammer
    Friday, 01 June 2012 16:35 posted by tayyab ali
    sir tanserformer ab ki jasa nahi mil raha he ap babt de ki kis tana se wire lagahe thi or tansformarka plz

    Monday, 28 May 2012 09:12 posted by jamil ahmed
    Assalam o Aliekum ! bhae mere pas ek inverter ha lekin wo chrging problem kr raha ha aur charge krne k bjae battery ko mazeed discharge kr raha bqi sab ok ha, kya fault hoskta ha ap rehnumai farmaen … thank you

    Sunday, 27 May 2012 15:00 posted by fawad
    transformer step up use karna hai ya step down

    Saturday, 26 May 2012 12:28 posted by Muntazir Hussain
    salam sir,
    I want to make 80 watt inverter.plz sent me some data and information that how can i make it by using d1047c transister.

    Wednesday, 16 May 2012 11:24 posted by shaizi
    plz tell easy way to make 1000watt ups& making ups from baike batry.reuse battry&other project .its ur big achevment

    Monday, 14 May 2012 18:56 posted by Usman Tariq
    AOA

    Please send me the video or url or 500watt of ups video

    Sunday, 13 May 2012 07:07 posted by umairtariq
    plz 500 watt ups ki video upload kr de

    Friday, 11 May 2012 15:01 posted by ABDUL
    Dear Abdul malik And umair relay system will explain in next video soon..
    Thanks
    Flag As Spammer
    Friday, 11 May 2012 09:42 posted by abdul malik
    plz 500 watt UPS ki video upload kr de. aur relay bi bana sikhayen.

    Thursday, 10 May 2012 06:19 posted by Abdul Malik
    please tell me how to make relay for UPS and how to fit it in UPS.

    Saturday, 05 May 2012 13:51 posted by umair kayani
    ups bnany k lie. relay ki kon si 2 leg 220v power supply or kon si 2 transformer k saat lgain gy ?

    Wednesday, 02 May 2012 17:17 posted by ABDUL
    @Salman Karachi main to yeh available hai app kahaan rahty ho?
    Flag As Spammer
    Monday, 30 April 2012 15:20 posted by ARSALAN
    myra pehla vizat tha kafi kuhc sikhne ko mila albta is k amp kistahna not karne hne

    Friday, 27 April 2012 19:32 posted by Salman
    Sir yaha to electronic shops walai kehtai he k transformer me 12+12 me 3 ampere se zyada nahi milta balkai bantai he nahi or ap ne 40 ampere transformer recomend kiya he 500 watt k liye.kya ye 12+12 volt and 3 ampere chalega ka nahi.Plz reply me

    Tuesday, 24 April 2012 06:38 posted by Tanveer
    transformer bane ka tarika bata dain plz………….

    Monday, 23 April 2012 03:45 posted by naz
    sir kindly transformer winding ka formula bata den

    Sunday, 22 April 2012 09:31 posted by Shafiq UR rahman
    sir g mujhe transformer windings k formula chheye plz send me formula

    Sunday, 22 April 2012 02:40 posted by ABDUL
    @zeeshan ali

    if you know about your transistor terminals collector, base, emitter you can use same formula.whatever it’s collector is inside or outside of the transistor
    Flag As Spammer
    Saturday, 21 April 2012 20:23 posted by shahid
    hi to all
    ma transformer bnane ka tareqa shekkhna chahta ho plz tell me

    Saturday, 21 April 2012 05:01 posted by zeeshan ali
    me ne d1047 kharede ha leken multimeter se check karne par us ke reading pnp transistor ke ha.. aur aap logo ke terminal configuration(tarteeb) ke belkul baraks(opposite) mid wala terminal collecter(jo ke body aur heat sink se attach karte ha) ha. please muje es ke sol bata de.

    Thursday, 19 April 2012 16:08 posted by WASEEM
    yarro mera nam waseem hai yarro me ne kuch sooochaa kiya?
    FOFLE
    FOURMULA
    OF
    FULLESS
    ENGEN AUR MERA URL ADDRES NAHI

    Wednesday, 18 April 2012 10:49 posted by waseem baig
    sir 500 watt k inverter ki video kahan sai milay gi.please 500 watt k inverter ki video upload kar dain

    Tuesday, 17 April 2012 15:17 posted by Mohammad Kashif
    men ny account bana hy apki site pe lekin phir b video show nai ho rahi.
    Flag As Spammer
    Saturday, 07 April 2012 12:46 posted by wasim
    plz i want automatic battery charger.auto cut off when the is fully charged.

    thnks

    Wednesday, 04 April 2012 21:38 posted by ejaz ahmad
    Hai! I am a student of Electrical Engineering currently 6th semester, and i want to do a mini project related to the communication and wireless but i dont find any intrusting topic.If any body hav a suggestion for me so plz Engr.ejazahmad@gmail.com..

    Wednesday, 04 April 2012 10:37 posted by haris aslam
    sir ap jo trasnformar ktne ampere ka leya hai

    Wednesday, 04 April 2012 04:46 posted by shahid
    dosth mara pass solar systam ha mger is key enrgey bahath come ha ma is 12v make karnah chath ho plz help me reple

    Monday, 02 April 2012 04:37 posted by Mohammad Kashif
    how to become member, and watch this video.
    Flag As Spammer
    Sunday, 01 April 2012 18:38 posted by Muhammad Umair
    assalam-o-alikum sir hum 500 watt ma kya kya chala sakhte hai or mujhe 500 watt ki 12vdc ki video dekhni hai mujhe ye video kahan mile gi sir

    Sunday, 01 April 2012 05:33 posted by ABDUL
    Wa Salam.

    Dear Khan Mohammad in this post about 500 watt inverter you can read and learn about it , for 100 watts you just need 2,2 D1047 transistors..
    Thanks
    Flag As Spammer
    Saturday, 31 March 2012 17:04 posted by khan mohammad
    ASSALAM ALIEKUM:
    Sir,I watched your video in which you made an inverter circuit which consist on a 30watt transformer,two 1047Transistors,two resistors and about five turns transformer coil.Now I want to use 100watt transformer then what I wil do.
    please give some information I am the beginner. ok thanks.

  • sir reliy kase lgate hai plz tell me

  • Mushtaq Ali

    Which turns sutible for 500 watt transformer primary and secondary coils

  • Mushtaq Ali

    13 feb 09:38 am which turns sutible for 500 watt transformer primary and secondary coils and winding core case size pleas @ abdulrauf bro muj aur link pa nahi mal raha hi pleas tum data rasend karo jladi pleas

  • Mushtaq Ali

    @abdulrauf Brother 500 power inverter transformer bananai ka vedios rasend karo pleas jaldi

  • Mushtaq Ali

    @Abdulrauf bro which turns sutible for 500 watt power inverter transformer primary and secondary coils pleas send me my email ma2604403@gmail.com

  • Nabeel Mughal

    Hi, My question is out of this thread. i wanna ask u “How to reduce the DC-voltages without changing current “. In my case I’ve 3.7 V Li-ion cell of 2 Amp i want to convert into 2 V and 2 A.
