Homemade 50 watt Power Inverters (12 VDC to 220 VAC) UPS
Power inverter (UPS) is a very useful device which can convert Low voltage from a DC source to high voltage AC. The most common power inverter is 12V to 240V inverter. Perhaps that is because 12V batteries are common. This type of power inverter usually draws current from a DC battery. This battery should be able to provide a high flow of electric current. Normally lead acid batteries can server this purpose well. This current is then converted to 240V square wave alternative current so that we may empower those electric appliances which work on 240V instead of 12V. Inverter falls in the category of expensive devices so many people don’t buy them even they need them. What if I tell you how to build an inverter yourself?
There are a lot of inverter circuit diagrams available online; some of them are complex and others are low performance. I designed my own inverter circuit which is comparable to any professionally made inverter but still is simple enough for you to try.
Watch Video with complete instruction .
Make Your Own Power Inverters 12 VDC to 220 VAC UPS
Ask questions about that ups
Edited by abdul - 09.12.2011 00:34
ABDUL
25 posts
---
Location: n.a.
27.01.2012 22:54
Re: Homemade 50 watt Power Inverters (12 VDC to 220 VAC) UPS
Question by ali:
mene transformer lena chaha but wo 12+12/220 ka he lekin 1 side 2 wire hen jo k 220 v k lye , 2sri traf 3 wire hen 12+12 v k lye. ap ne diagram me jo transformer dikhaya he os me 1 side 2 aur 2sri side 6 wire hen, ab me kea kron , ye transformer kahan se lon, thank u.
----------------------------------------------------------------------
Ans: Dear ali aap video main ghor se daikho us transformer 5, 5 turns extra ke gai hain, yani aap ko 3 point nikalny hun gy.
anas
3 posts
---
Location: n.a.
01.03.2012 13:08
Re: Homemade 50 watt Power Inverters (12 VDC to 220 VAC) UPS
salam alaicom
my bruther i dont know how you made the transformer
do you get a normal transformer from shop
and edit it but how mouch turns you made and in witch direction may you paint a pic to explane how you made the turns precisely
and an other q
i have battery (160 ah) is this circuit work with this battery
anas
3 posts
---
Location: n.a.
01.03.2012 13:14
Re: Homemade 50 watt Power Inverters (12 VDC to 220 VAC) UPS
please send me a picture explaines how to turn the wire
in any direction
and how mouch turns
anas
3 posts
---
Location: n.a.
01.03.2012 13:19
Re: Homemade 50 watt Power Inverters (12 VDC to 220 VAC) UPS
please send me a picture explains how to turn the wirein any directionand the number of turns
ABDUL
25 posts
---
Location: n.a.
19.03.2012 22:55
Re: Homemade 50 watt Power Inverters (12 VDC to 220 VAC) UPS
dear friend its normal transformer 12 by12 volt ac easily available in electronics shop.
you just add 5 , 5 turns clockwise or according to your secondary coiling turns.
ABDUL
25 posts
---
Location: n.a.
30.03.2012 22:53
Re: Homemade 50 watt Power Inverters (12 VDC to 220 VAC) UPS
salam alaicom
my bruther i dont know how you made the transformer
do you get a normal transformer from shop
and edit it but how mouch turns you made and in witch direction may you paint a pic to explane how you made the turns precisely
and an other q
i have battery (160 ah) is this circuit work with this battery
Wa salam.
that transformer available in electronics market the name of that transformer by tell to shopkeeper is 12by12 inverter transformer.

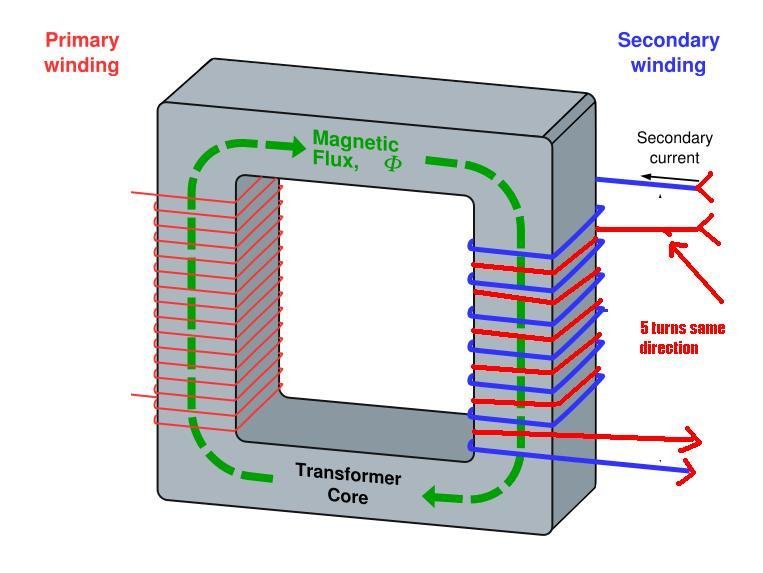

i also updated the coiling picture
for 160 ah battery i have made 500 Watt inverter you can visit [url]http://paksc.org/pk/diy-projects/diy-projects/500-watt-12dc-to-220-vac-power-inverter-ups-construction-in-urdu-810[url]
thanks
Mohammad Kashif
3 posts
---
Location: n.a.
31.03.2012 23:55
Re: Homemade 50 watt Power Inverters (12 VDC to 220 VAC) UPS
Asalam o alaiqum.
sir how to make Rally for ups.
ABDUL
25 posts
---
Location: n.a.
01.04.2012 00:02
Re: Homemade 50 watt Power Inverters (12 VDC to 220 VAC) UPS
Asalam o alaiqum.
sir how to make Rally for ups.
Wa salam
its diagram will upload soon..
Mohammad Kashif
3 posts
---
Location: n.a.
01.04.2012 23:26
Re: Homemade 50 watt Power Inverters (12 VDC to 220 VAC) UPS
[quote]Asalam o alaiqum.
sir how to make Rally for ups.
Wa salam
its diagram will upload soon..[/quote]
thanks
and how to become member and . watch 500 watt ups video..
ABDUL
25 posts
---
Location: n.a.
16.04.2012 09:53
Re: Homemade 50 watt Power Inverters (12 VDC to 220 VAC) UPS
[quote][quote]Asalam o alaiqum.
sir how to make Rally for ups.
Wa salam
its diagram will upload soon..[/quote]
thanks
and how to become member and . watch 500 watt ups video..[/quote]
please fill the membership form then login with your id and password
usman
1 post
---
Location: n.a.
15.05.2012 14:03
Re: Homemade 50 watt Power Inverters (12 VDC to 220 VAC) UPS
how can we use relays and other things to charge the battery up as well, so that we can get a decent ups out of it, plz reply
ABDUL
25 posts
---
Location: n.a.
19.05.2012 22:36
Re: Homemade 50 watt Power Inverters (12 VDC to 220 VAC) UPS
how can we use relays and other things to charge the battery up as well, so that we can get a decent ups out of it, plz reply
we will publish it next video soon.. in that video we explain all things regarding charging and relays,,
thanks
Mohammad Kashif
3 posts
---
Location: n.a.
05.06.2012 00:35
Re: Homemade 50 watt Power Inverters (12 VDC to 220 VAC) UPS
Asalam o Alaiqum,
Please relay instalation diagram upload karain. jis se auto charging ho or auto on off ho inverter. i make one inverter but i don't know how to charge and how to convert it in ups. with relay.. please sir upload the relay diagram
